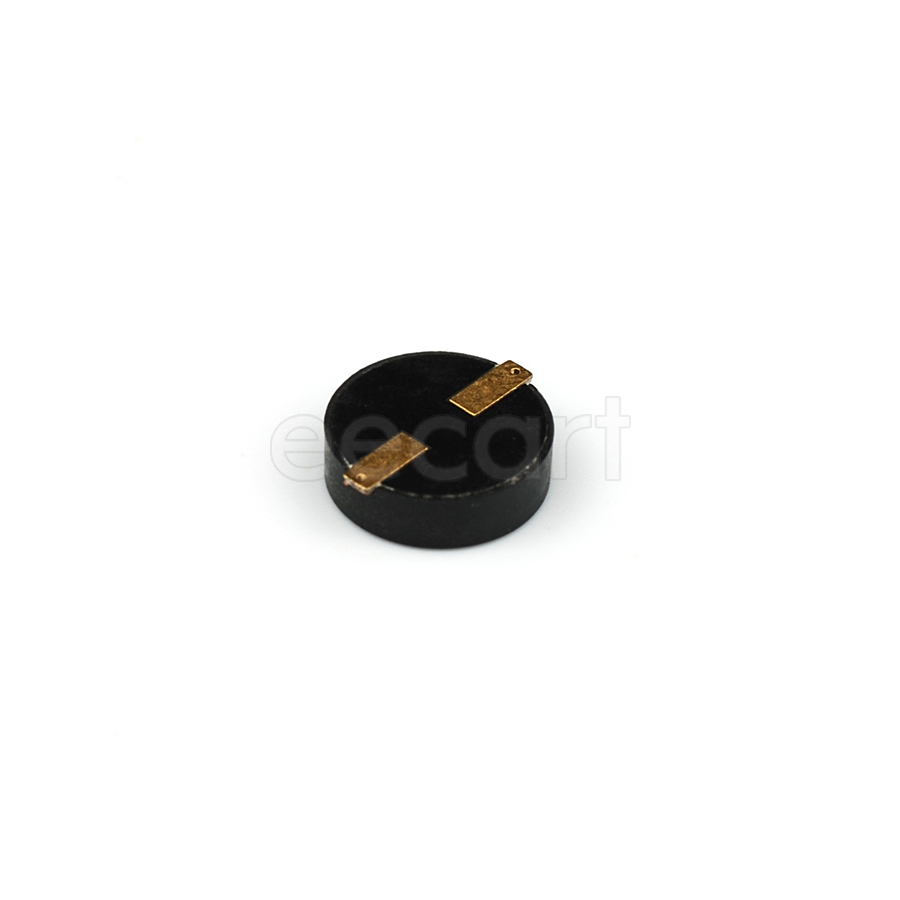

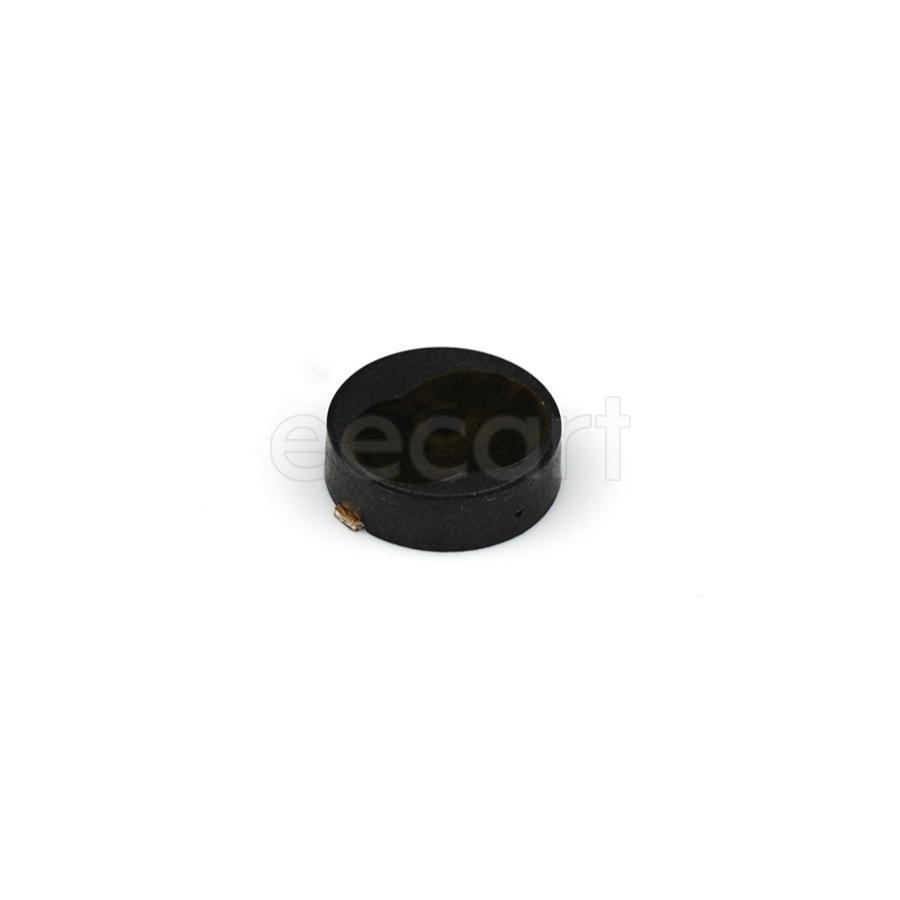

CBT-09427-SMT-TR
Manufacturer:
Same Sky
Mfr.Part #:
CBT-09427-SMT-TR
Datasheet:
Description:
Buzzers/Loudspeaker SMD/SMT 87 dB 2.73 kHz 9 mm
| Parameter | Value |
|---|---|
| Length | 9 mm |
| Width | 9 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 2.5 mm |
| Lead Free | Lead Free |
| Frequency | 2.73 kHz |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Operating Supply Current | 110 mA |
| Shape | Round |
| Sensing Method | Magnetic |
| Schedule B | 8531800040 |
| Type | Electromagnetic |
| Current Rating | 110 mA |
| Diameter | 9 mm |
| Sound Pressure Level | 87 dB |
| Dimensions | 9 mm |
| Voltage Rating | 3.6 V |
| RoHS | Compliant |
| Packaging | Reel |
Stock: 3613
Distributors
pcbx
pcbxUnit Price$1.30206
Ext.Price$1.30206
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.30206 | $1.30206 |
| 10 | $1.05755 | $10.57550 |
| 25 | $0.97633 | $24.40825 |
| 50 | $0.91990 | $45.99500 |
| 100 | $0.86348 | $86.34800 |
| 300 | $0.77471 | $232.41300 |
| 500 | $0.69506 | $347.53000 |
